Pallet Roller – 2.5

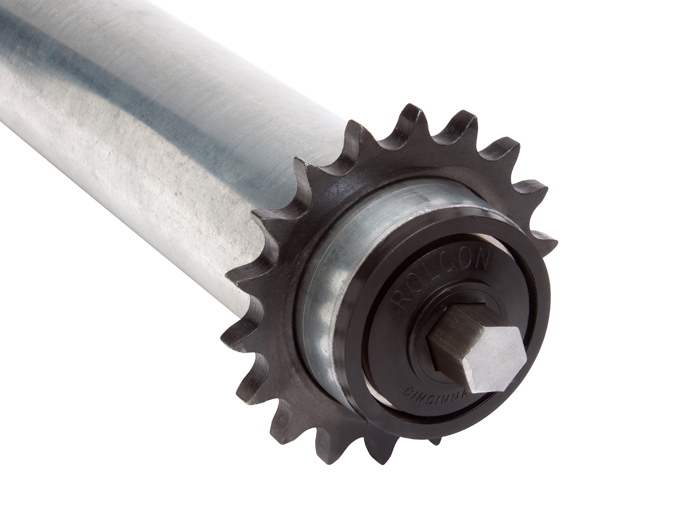

Pallet rollers or sprocketed rollers provide an economical way to create or add to an existing powered conveyor system. The rollers are available with either single or double sprockets and are welded onto the roller tube. Double sprocket conveyor rollers are ideal for heavy-duty material handling applications, while single sprocket pallet rollers work well for light-duty pallet roller conveyor systems. Sprockets can be located anywhere on the tube. Many options are available upon request.
It is important when ordering rollers with sprockets to supply the location of the sprocket as measured from the conveyor frame. Measurements are taken from inside the frame to the centerline of the sprocket. If you have any questions about how to properly locate the sprocket or how to measure your roller that is not in the frame, please call customer service, 800-486-2472.
Accurate measurements are very important. Rollers with sprockets are not returnable.
These rollers are very configurable and can be customized to fit your needs. Many options are available upon request. Please contact us for more information.
If you don't see the specification you want please contact us for a custom option or to discuss your application.
Slide table to the left to view.
|Tube Material:||11 Gauge Galvanized, 11 Gauge Raw Steel, 11 Gauge s.s., 14 Gauge Raw Steel, Unknown|
|Axle:||11/16 Hex c.r.s., 11/16 Hex s.s., 7/16 hex c.r.s., 7/16 Hex s.s., Unknown|
|Bearing:||Polyhoused Precision ABEC, Polyhoused Precision ABEC s.s., Unground Non-Precision crimped, Unknown|
|Between Frame Measurement:||6 through 80|
