Gravity Roller – 1-5/8

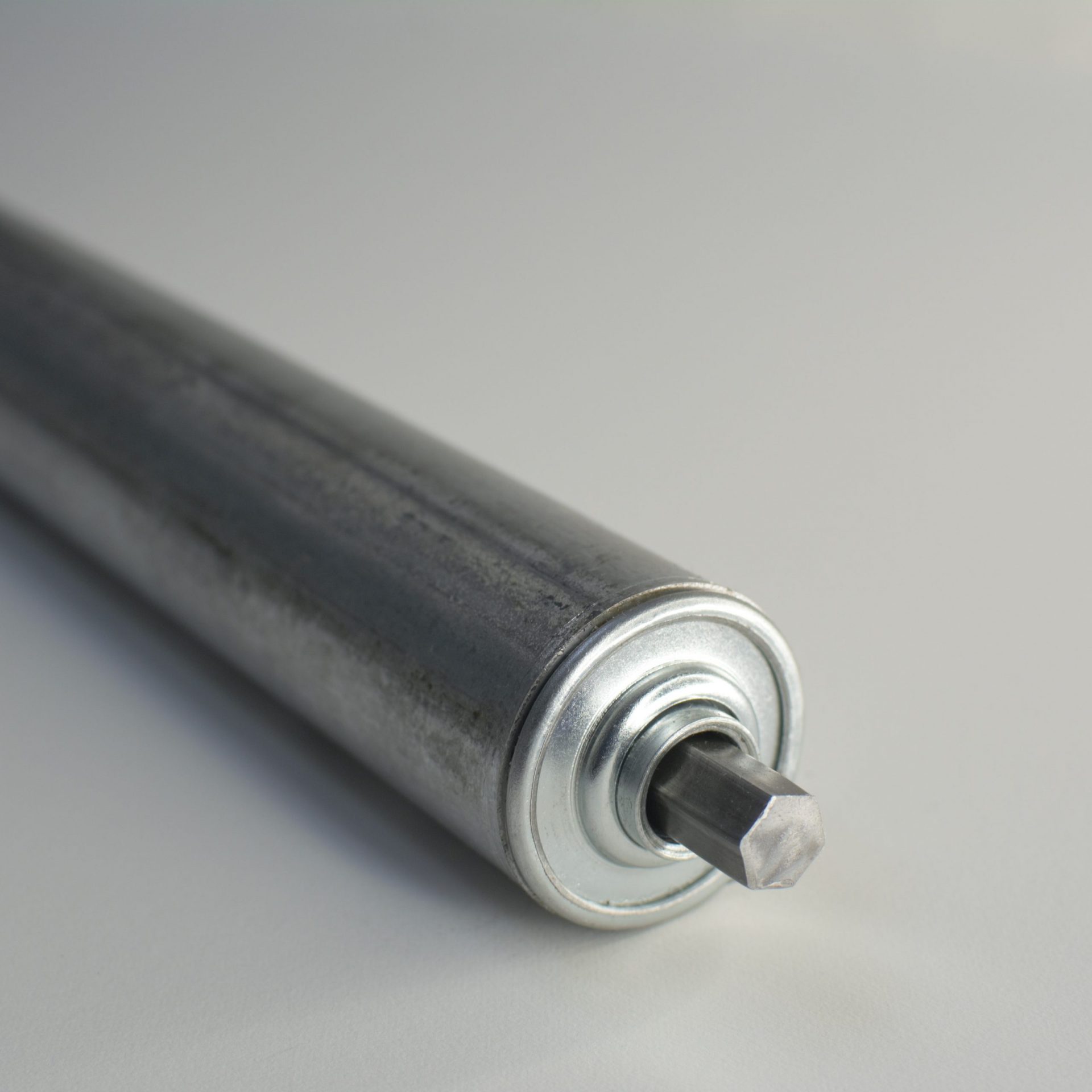

Gravity conveyor rollers are best suited for non-powered applications or where your conveyor speed is less than 200 feet per minute. Standard configuration 1-5/8″ diameter tube 16 gauge galvanized steel, non-precision bearings, and 7/16″ hex axle. Other options are available.
These rollers are very configurable and can be customized to fit your needs. Many options are available upon request. Please contact us for more information.
If you don't see the specification you want please contact us for a custom option or to discuss your application.
Slide table to the left to view.
|Tube Material:||16 Gauge 304 s.s., 16 Gauge Galvanized, Unknown|
|Axle:||7/16 hex c.r.s., 7/16 Hex s.s., Unknown|
|Bearing:||Unground Non-Precision crimped, Unknown|
|Between Frame Measurement:||6 through 40|
